Free pad footing calculator to SANS 10100
Checks an isolated pad footing for bearing pressure, overturning, sliding, bending, shear and punching. Free, runs in your browser, and prints a calc sheet with clause references.
No install, no card. The result shows without an account; a free account opens every check with its clause, the calc sheet and the bending schedule for 3 designs a month (one calculator, 24 hours). Calculator packs, coming soon, remove the limit.
What the calculator checks.
Every check is shown with the working, the clause and a pass or fail.
- Self-weight of the base, column stub and soil added to every case, then qmax and qmin against your allowable bearing pressure
- Overturning and sliding safety factors
- Bending both ways at the column face (SANS 10100 cl. 4.3.3): K, lever arm, As,req, As,min and the bars chosen
- One-way shear at d from the face and punching on the 1.5d perimeter (cl. 4.3.4 and cl. 4.4.5)
- Column-face crushing and minimum steel
- Optional bearing capacity of the soil from φ′, c′ or cu and the groundwater level, on the effective area of the footing (SANS 10160-5 and EN 1997-1 Annex D)

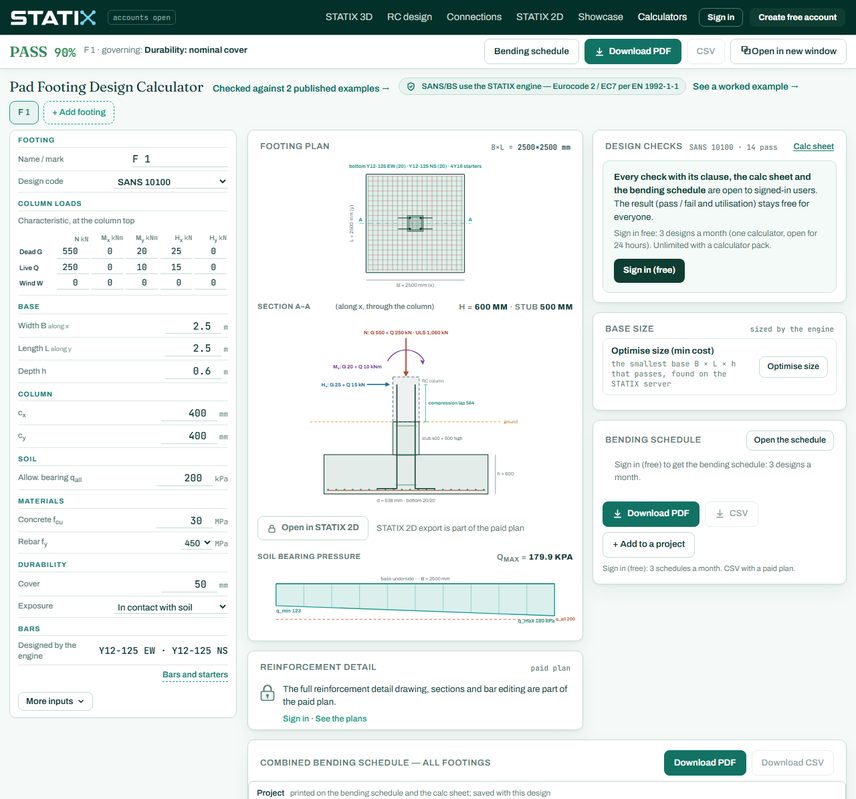

- Plan, elevation and bearing pressure drawings, steel mass and concrete volume
Codes: SANS 10100-1, BS 8110, Eurocode 2 with EC7 (EN 1992-1-1)
A tool to check a design, not a design approval. Check the results and have the design signed by a registered professional engineer.
Short answers.
About this free calculator.
Is the pad footing calculator free?
Yes. It is free to use: enter your own values and every check shows on the page with its result.
Do I need an account?
No account is needed to use it: every check shows on the page with its result and clause, with a calc sheet summary. Without an account you see the result. A free STATIX account (email or Google, no card) opens every check with its clause, the full calc sheet to print or save as a PDF and the SANS 282 bending schedule for 3 designs a month (one calculator, open for 24 hours). Paid plans, coming soon, will make them unlimited.
Which code clauses does it use?
The calc sheet names the clause on every step: SANS 10100 cl. 4.3.3 for bending, cl. 4.3.4 for one-way shear and cl. 4.4.5 for punching. Choose BS 8110 or Eurocode 2 and the sheet follows that code.
